美國 LOWRANCE 勞倫斯 HDS-5 GEN2 全新第二代 船用GPS/魚探 3機1體 / 5吋正方型高解析液晶螢幕.導航反應性高.雙周波 新寬頻帶技術 最深達1500米 低耗電 高功能低價位 內建全球電子海圖 / 中文操作 /全防水 台灣遠近海專用機



美國  LOWRANCE 勞倫斯 HDS-5 GEN2 全新第二代
繁體中文操作 GPS/魚探 三合一機種
液晶5吋正方型螢幕高解析畫質
船用GPS 內建 16段 GPS WAAS 高差分定位天線
高亮度 反日光 5吋 480X480 彩色液晶 VGA TFT 16位元彩影
含台灣區標準電子海圖
電源DC10~18V
50/200 雙周波 新寬頻帶技術
電腦自動調整250~3750W功率 最深可達 1575米
航點數   5000點
航路線     200條
航跡線       10條
軌跡點 12000點
人員落海功能

可擴充 雷達功能 (選購)
可擴充 AIS 功能  (選購)
可擴充 聲納顯影 功能 (選購)
可加購台灣區電子海圖(選購)

可用SD記憶卡記錄畫面,重撥畫面功能.
可儲存影像照片畫面
可記錄影像經緯度
可錄取聲納探測
可在漁探畫面直接設定GPS標定點
支援:海水溫度
           台灣區電子海圖卡
           高容量SD記憶卡


最適合: 魷魚、小卷釣船、鮪釣船、海釣船、湖釣、河釣
本公司原裝進口 LOWRANCE 亞洲區台灣進口商


附中文簡易說明書~
全機 IPX 7 全防水等級設計
本公司原裝進口 指名
雷騰電子
才享有中文操作及技術服務保固
台灣 雷騰電子保固 2年 ( 原廠公司貨 )

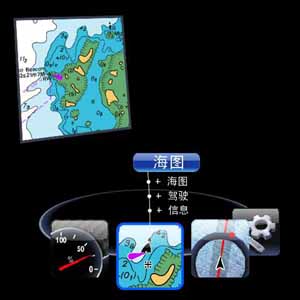

畫面分割功能 中文化 小圖顯示方便確認選擇 簡單易用

×

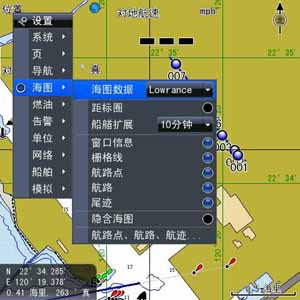

目錄 中文化 功能簡單 易用 功能啟動為 藍圈● 沒啟動 為 黑圈●

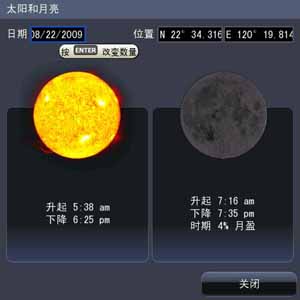

太陽月亮昇降 引發漲退潮 可做參考 可自選日期

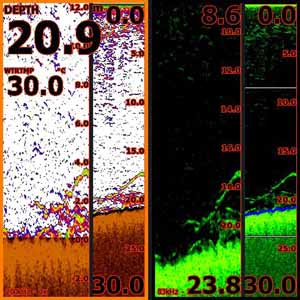

新寬頻帶技術 魚探超音波反射目標強 回波及背景色可調最佳顯示




  • Built-in Broadband Sounder
    • Internal 16-channel GPS+WAAS (GPS+EGNOS+MSAS for non-Americas) Antenna
      • Brilliant, New 5"/12.7 cm SolarMAX™ Plus Display
        • Built-in High-Definition Insight™ Mapping Options (Americas) or Navionics World Background map (non-Americas)
          • Largest Selection of Chartcard Options Including Navionics® Platinum+ with TurboView™
            • SIRIUS Satellite Weather and Stereo-Quality Radio Capability (Americas)
              • Ethernetworks and NMEA 2000® Performance Networking Options
                • Expanded New 2-Year Limited Warranty

                  DISPLAY



                Display Size 5 in \ 127 mm
                Display Resolution 480 x 480 (H x W)
                Display Type 256-color SolarMAX™ PLUS TFT
                Backlighting Screen/Keypad
                Backlighting Type Flourescent (CCFL) backlit screen, LED keypad backlight
                Resize Display Window Yes
                Sonar And GPS Overlay Data Yes
                Split Screen Presentation Yes
                Multilanguage Display Yes
                Languages Supported 23

                SONAR / SOUNDER



                Sonar Frequency 50/200 or 83/200 kHz
                Transducer Type Choice of dual frequency Skimmer®
                Sonar Output Power Max Max 250W Peak to Peak (31W RMS) actual; 30,000W Peak to Peak analog equivalent W
                Sonar Depth Max 5000 ft \ 1524 m
                Standard Fishfinder Features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more Yes
                FlashGraf™ Yes
                FasTrack™ Yes
                Ping Speed HyperScroll™ Yes
                Depth Alarm Yes
                Temperature Display Yes

                GPS / NAVIGATION



                GPS Antenna Type Internal, high-sensitivity GPS+WAAS (Americas) or GPS+EGNOS+MSAS (non-Americas)
                GPS Receiver Channels 16 channels
                Background Map Expanded U.S. BaseMap or Lake Insight™ or Nautic Insight™ (Americas) or Worldwide background map (non-Americas)
                Custom Mapping Optional Navionics® Platinum+ and Platinum chartcards with TurboView™ for worldwide coverage - as well as Navionics® HotMaps™ Platinum, Lowrance Hot Spots® PRO and LakeMaster® ProMaps (Americas)
                Waypoint Storage 5000
                Routes 200
                Plot Trails Up to 10 trails - up to 12,000 points/trail
                Man Overboard Feature Yes
                GPS Alarms Yes

                RADAR



                Antenna Type Optional Lowrance radar choices available

                NETWORKING / CONNECTORS



                NMEA 0183 Input Yes
                NMEA 0183 Interface up to 38,400 baud
                NMEA 2000 Pending Certification Yes
                NMEA Output 0183/2000
                Connectors NMEA 2000®, NMEA 0183 and Ethernet

                TECHNICAL / ENVIRONMENTAL



                Built-in Backup Memory Yes
                Casing Sealed and waterproof
                Waterproof Standard IPX6 and IPX7 with memory card door closed
                Width 7.2 in \ 184 mm
                Height 5.7 in \ 146 mm
                Depth 4 in \ 102 mm

                POWER



                Power Supply 10 - 18 vDC
                Power Supply: Input Current 0.7A at 13VDC with backlight on, 0.4A with backlight off

                OTHER



                Alarms Local and networked alarms available for included and optional components, ncluding sonar, GPS/navigation, battery voltage, weather, engine/transmission, tank level, AIS and DSC
                List of Specified Standards

                EMC: IC RSS-310; FCC Part 15 Class B; IEC60945

                Memory Card Capable One SD/MMC/MMC+ memory card slot
                Operating Temperature -15°C to 55°C (5°F to 130°F)
                Other Features

                Broadband Sounder technology, ethernet networking, optional SIRIUS Satellite Weather/Radio and new 2-year limited warranty
